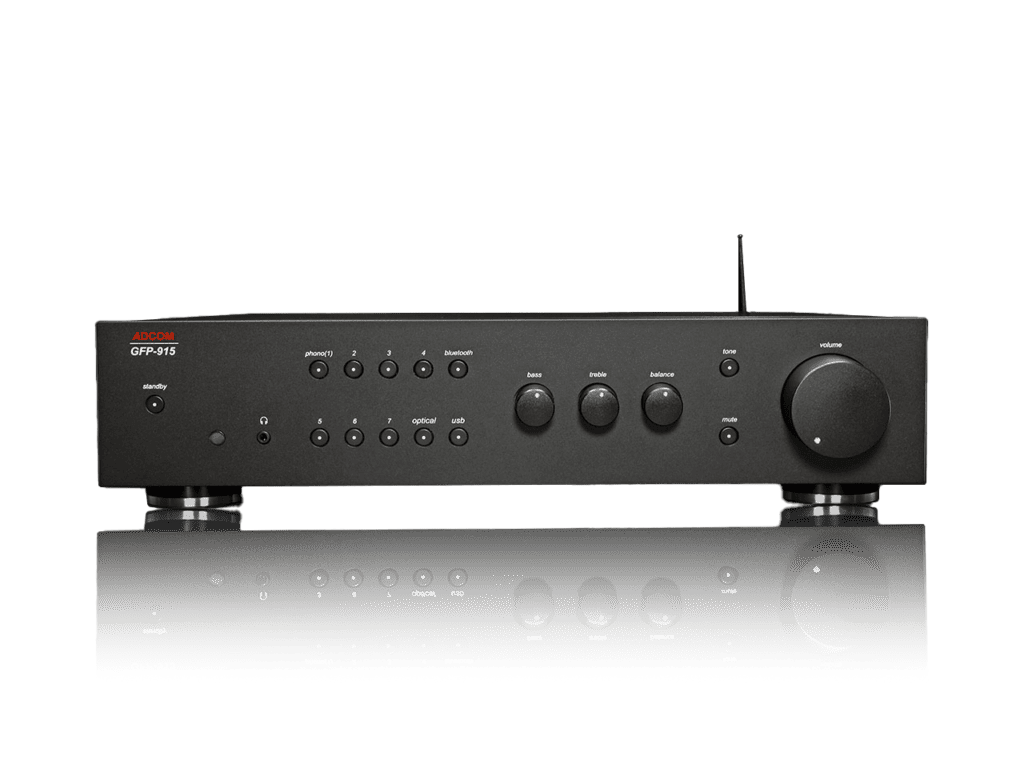

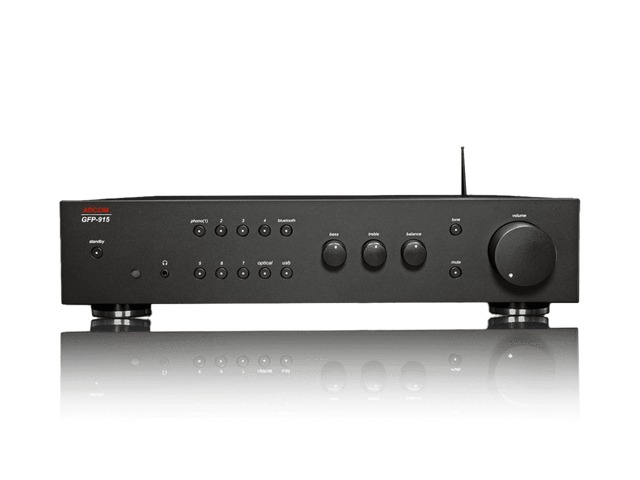

ADCOM Pre-Amplifier GFP-915

Frequency Resp.
(±0.5 dB Line volume at max)
5 Hz – 100 kHz High Level
50 Hz – 50 KHz

THD + Noise (@rated output 20 Hz – 20 kHz) 0.005% High Level 0.15% MM. 0.03% MC.

Signal to Noise
(@rated output – A weighted)
≥100 dB High Level
≥95 dB MM.
≥95 dB MC.

Weight
15.7 lbs. (7.0 kg)
Shipping Weight: 20 lbs. (9.05 kg)

Input Sensitivity
500 mV High Level
3.5 mV MM.
25mV MC.

Input Impedance
11 Ω High Level
11 Ω MM.
11 Ω MC.

RIAA accuracy
± 0.25dB (20Hz – 20kHz) phono

Output Impedance
100 Ω Bypass Outputs
100 Ω Main Outputs
475 Ω Tape Outputs

Output Level
2.0 Vrms Bypass Outputs
2.0 Vrms Main Outputs
1.0 Vrms Rec Outputs

Output Level (Maximum)
10.0 Vrms Bypass Outputs
10.0 Vrms Main Outputs

USB Input (Maximum support)
192K/24bit

Optical Input (Maximum Support)
192K/24bit

Bluetooth Version
Qualcomm 5.0

Tone Controls
± 11.5 dB Bass (20Hz)
± 8.5 dB Treble (20kHz)

Power
110 VAC – 240 VAC, 50/6O Hz

Max Dimensions
4.13” x 16.9” x 14.3”
105 mm. x 430 mm. x 335 mm.
