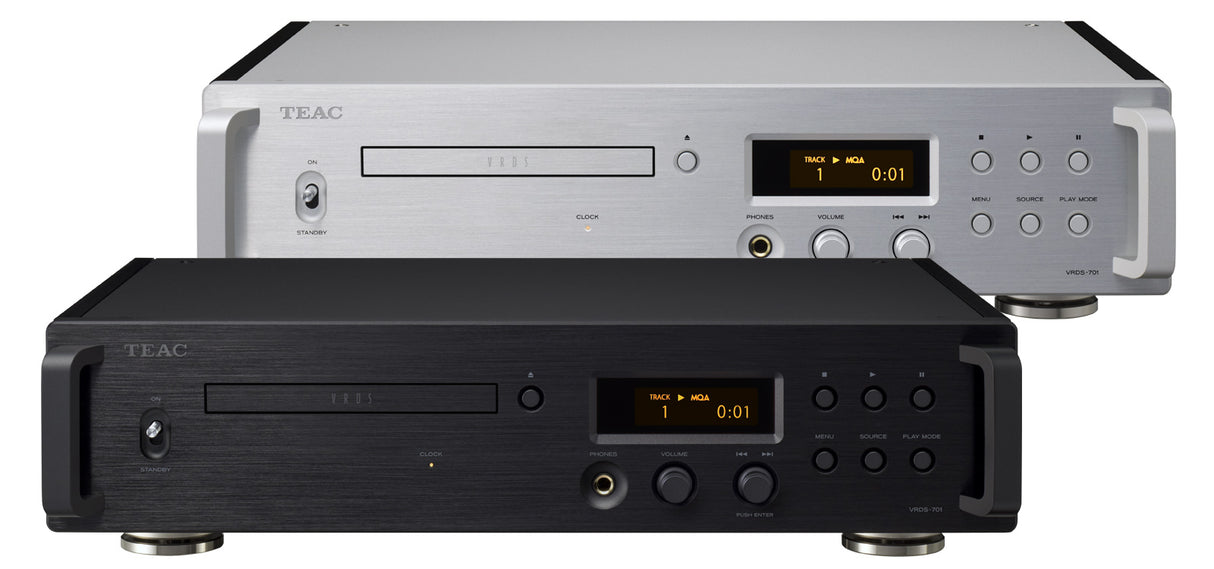

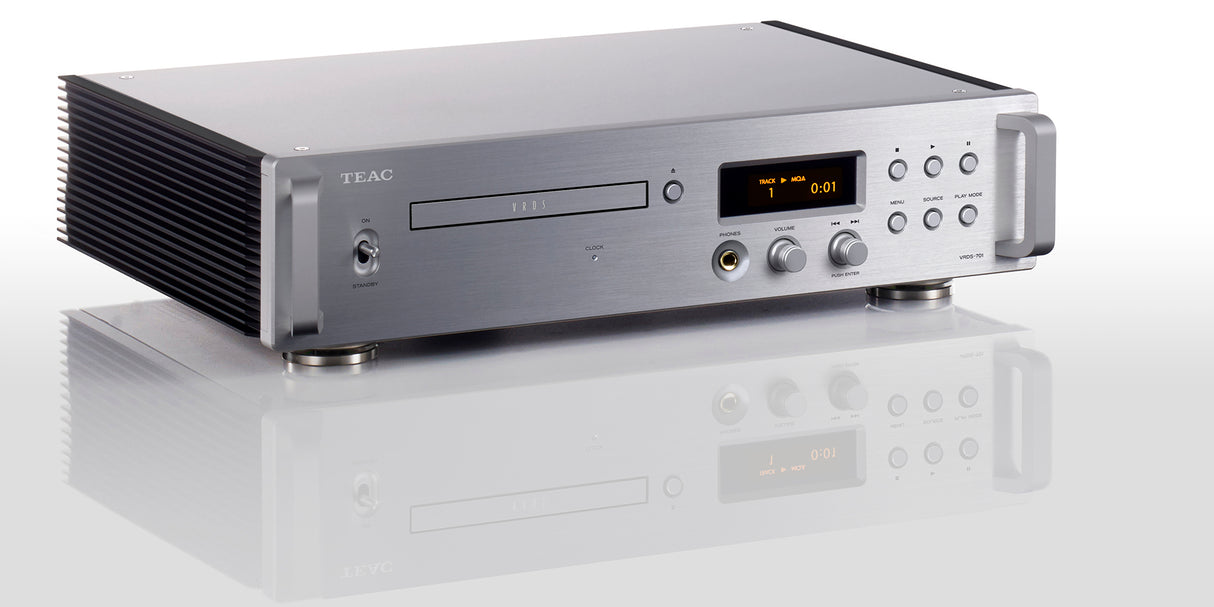

Teac VRDS-701 Single-well CD Player / USB DAC utilizing VRDS mechanism

CD section
Supported media Audio CD, CD (CD-R/CD-RW) * 8cm CDs not supported.
Frequencey response 5Hz to 80kHz (+1dB, –6dB)
S/N ratio 108dB (A-weight, 1kHz)
Total harmonic distortion 0.002% (1kHz, LPF: 20Hz to 20kHz)
Analog audio outputs
Balanced
Connectors XLR × 1 pair
Maximum output level 2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB)
4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB)
12Vrms (1kHz, Full scale, 10kΩ loaded, VARIABLE)
Output impedance 220Ω
Unbalanced
Connectors RCA × 1 pair
Maximum output level 2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB)
4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB)
6Vrms (1kHz, Full scale, 10kΩ loaded, VRIABLE)
Output impedance 180Ω
Digital audio inputs
USB
Connector USB Type-C × 1 (USB2.0 or more)
Supported formats
PCM 16 / 24 / 32bit
44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz
DSD 2.8M / 5.6M / 11.2M / 22.5MHz
COAXIAL
Connector RCA × 1
Input level 0.5Vp-p
Input impedance 75Ω
Supported formats
PCM 16 / 24bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz
OPTICAL
Connector TOS (JEITA RC5720C) × 1
Input level –24.0 to –14.5dBm peak
Supported formats
PCM 16 / 24bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz
Digital audio outputs
COAXIAL
Connector RCA × 1
Output level 0.5Vp-p
Output impedance 75Ω
OPTICAL
Connector TOS (JEITA RC5720C) × 1
Headphones out
Connector ¼″ (6.3mm) Stereo jack × 1
Maximum output 500mW + 500mW (into 32Ω)
Clock sync input
Connector BNC × 1
Input frequency 10MHz
Input impedance 50Ω
Input level
Rectangle wave Equivalent to TTL level
Sine wave 0.5 to 1.0Vrms
External control
Trigger in (12V TRIGGER IN)
Connector 3.5mm Mono mini jack × 1
Input level 12V, 1mA
Trigger out (12V TRIGGER THRU)
Connector 3.5mm Mono mini jack × 1
Output level 12V
Maximum curret supply 100mA
Power AC120V, 60Hz
AC220-240V, 50/60Hz
Power consumption 20W
Standby power 0.4W
Overall dimensions 444 (W) × 111 (H) × 333 (D) mm (including protrusions)
Weight 11.1kg
Operating temperature +5℃ to +35℃
Operating humidity 5％ to 85％ (no condensation)
Storage Temperature range −20℃ to +55℃
Included accessories AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's manual


* RoHS complied.
* Design and specification may subject to change without notice.
