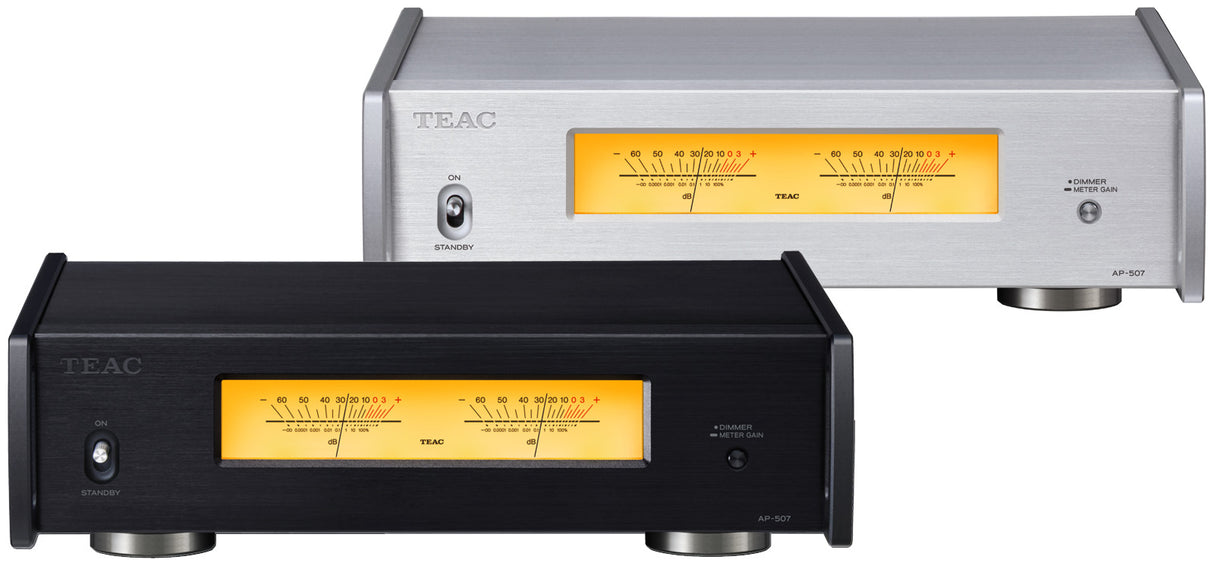

Teac AP-507 Stereo Power Amplifier

$2,499.99
%3Cp%3E%3Ca%20href=%22/pages/suncoast-audio-direct-points%22%20target=%22_blank%22%20title=%22Power%20Perks%20Rewards%22%3E%3Cstrong%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/strong%3E%3C/a%3E%3C/p%3E
Color

Description
The Teac AP-507 is a compact stereo power amplifier built on Hypex NCOREx® technology for exceptional audio performance. It operates in multiple modes—standalone, bi-amped, or BTL bridged configuration with 350W output at 8 ohms. TEAC's refined NCORE implementation creates a detailed, three-dimensional soundstage, while the dual-mono buffer amplifier maintains pristine clarity throughout the frequency range. The Reference 500 series design incorporates advanced vibration isolation through a 2.8mm semi-floating aluminum chassis and a 3-point Stress-Less Isolation Foot system, delivering the refined sound quality serious listeners demand.

Technical Specifications

Spec description
Amplifier section
Maximum effective output (1kHz)
STEREO, BI-AMP 170W + 170W (4Ω)
95W + 95W (8Ω)
BTL 350W (8Ω)
Rated Output (1% THD, 1kHz)
STEREO, BI-AMP 125W + 125W (4Ω)
70W + 70W (8Ω)
BTL 230W (8Ω)
Allowable speaker impedance
STEREO, BI-AMP 4Ω to 16Ω
BTL 8Ω to 16Ω
Analog audio inputs
Balanced XLR × 1 pair
Input sensitivity 1.3V (8Ω, 1% THD output)
Input impedance 10kΩ or more
Unbalanced RCA × 1 pair
Input sensitivity 0.66V (8Ω, 1% THD output)
Input impedance 10kΩ or more
Speaker output
Connector Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)
External control
12V Trigger in
Conenctor 3.5mm Monaural Mini jack × 1
12V Trigger out (THRU)
Conenctor 3.5mm Monaural Mini jack × 1
General
Power supply AC 220 230V, 50/60Hz (Europe), AC 120V, 60Hz (USA/Canada)
Power consumption 58W
External dimensions (W×H×D) 290 × 84.5 × 271mm, 11 ½” × 3 ⅜” × 10 ¾” (including protrusions)
Weight 4.4kg / 9 ¾ lb
Included accessories Power cord × 1, Rubber pads × 3, Antistatic Cloth for level meters × 1, Owner’s manual


Audio performance
Frequency response 10Hz-50kHz (+0dB, –5dB, 8Ω, 1kHz, 1W)
Total harmonic distortion 0.0015% (8Ω1kHz, 12.5W)
S/N ratio 113 dB (8Ω, 1kHz)

Design and specification may subject to change without notice.
RoHS complied
