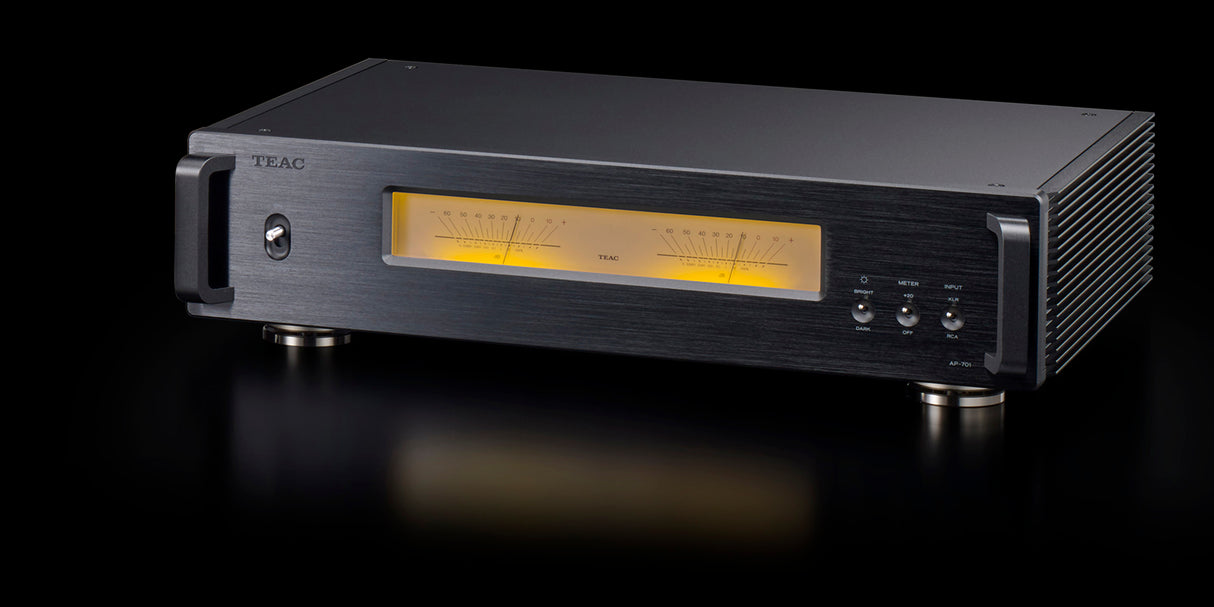

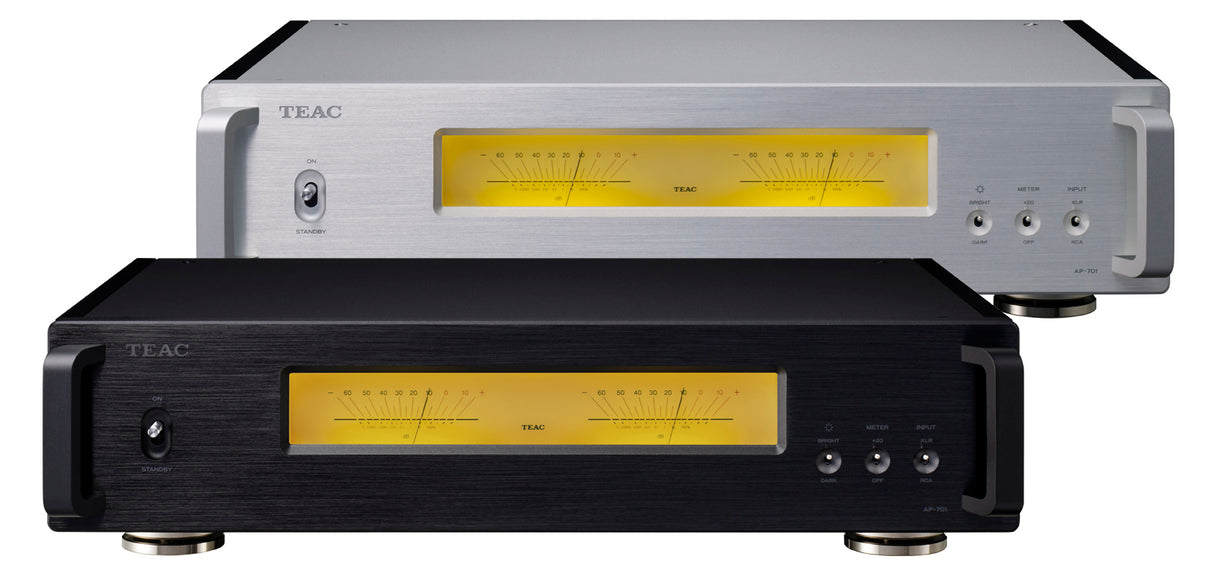

Teac AP-701 Stereo Power Amplifier

$3,999.99
%3Cp%3E%3Ca%20href=%22/pages/suncoast-audio-direct-points%22%20target=%22_blank%22%20title=%22Power%20Perks%20Rewards%22%3E%3Cstrong%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/strong%3E%3C/a%3E%3C/p%3E
Color

Description
The Teac AP-701 is a dual mono power amplifier engineered for uncompromising audio performance. Featuring two Hypex Electronics Ncore power modules and fully balanced circuitry throughout, it delivers pristine signal integrity from input to output. Independent toroidal transformers and discrete buffer amplifiers for each channel ensure complete channel separation and dynamic clarity. The rigid yet vibration-controlled cabinet—constructed from 3mm heavy metal plate with suspension-jointed construction—minimizes resonance for open, articulate sound reproduction. Every design element works in concert to preserve the full dynamism of your source material and unlock your speakers' true potential.

Technical Specifications

Amplifier section
Practical maximum output 260W + 260W (4Ω, 1kHz, JEITA)
170W + 170W (8Ω, 1kHz, JEITA)
Rated output 230W + 230W (4Ω, 1kHz, THD 1%)
125W + 125W (8Ω, 1kHz, THD 1%)
Total harmonic distortion 0.003% (8Ω, 1kHz, 55W, JEITA)
S/N ratio 110dB (8Ω, 1kHz, IHF-A)
Frequency response 10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA)
Analog audio inputs
Balanced
Connectors XLR (HOT: 2) × 1 pair
Input sensitivity 1.6V
Input impedance 64kΩ (in STEREO mode), 32kΩ (in BI-AMP mode)
Unbalanced
Connectors RCA (gold-plated) × 1 pair
Input sensitivity 1.6V
Input impedance 32kΩ (in STEREO mode), 16kΩ (in BI-AMP mode)
Speaker output
Connectors Screw type × 1 pair (gold-plate, compatible with Banana plug)
Compatible speaker impedance 4Ω to 8Ω
External control
Trigger input (12V TRIGGER IN)
Connector 3.5mm Mono mini jack × 1
Input level 12V, 1mA
Trigger output (12V TRIGGER THRU)
Connector 3.5mm Mono mini jack × 1
Power AC120V, 60Hz
AC220 - 240V, 50/60Hz
Power consumption (120V) 97W
(230V) 95W
Standby power 0.4W
Overall dimensions 444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions)
Weight 9.9kg
Operating Temperature ＋5℃ to ＋35℃
Operating Humidity Range 5% to 85% (no condensation)
Storage Temperature Range –20℃ to ＋55℃
Included accessory Power cord, Foot pad × 3, Owner's manual
* Design and specification may subject to change without notice.
* RoHS complied
