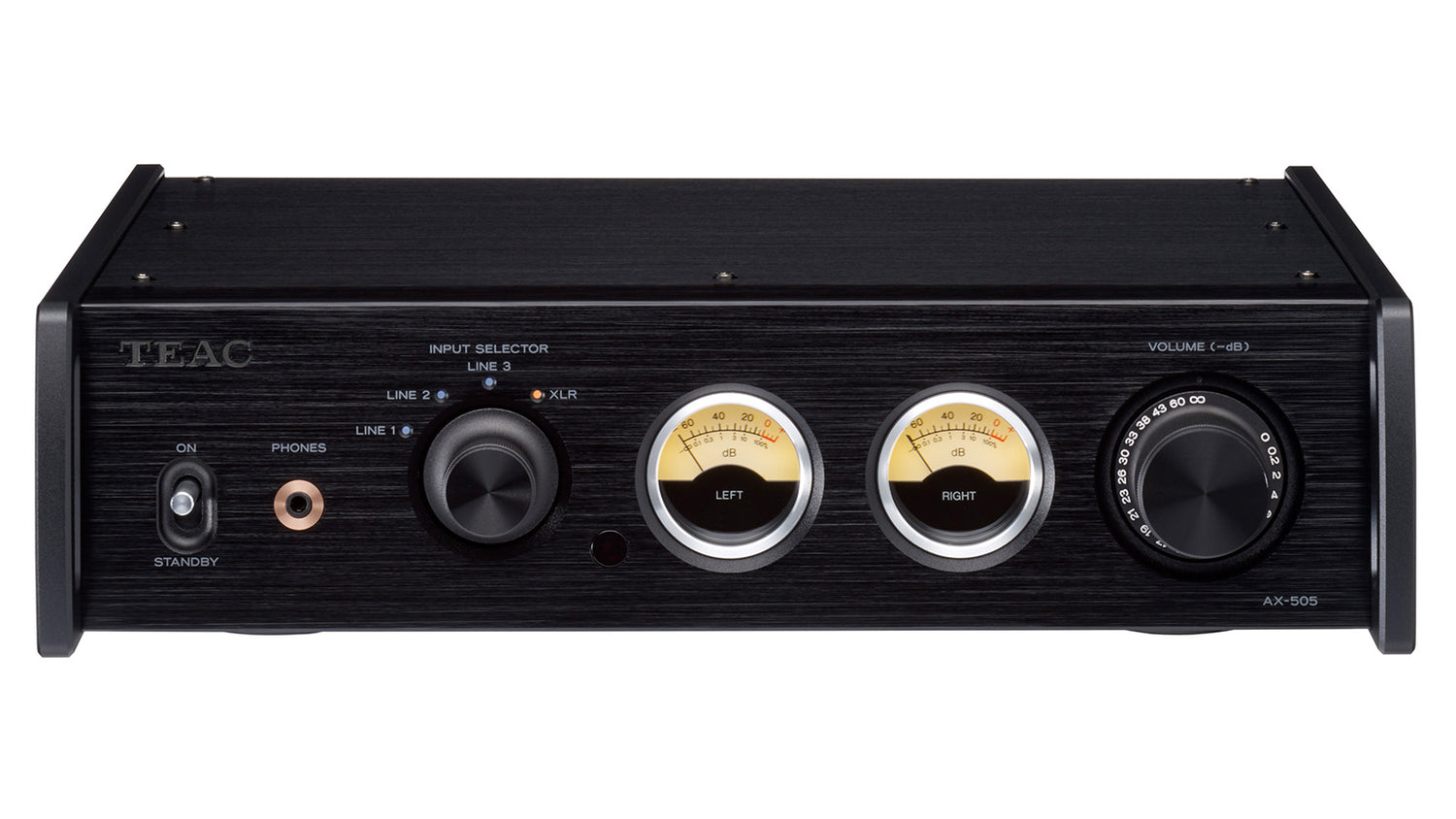

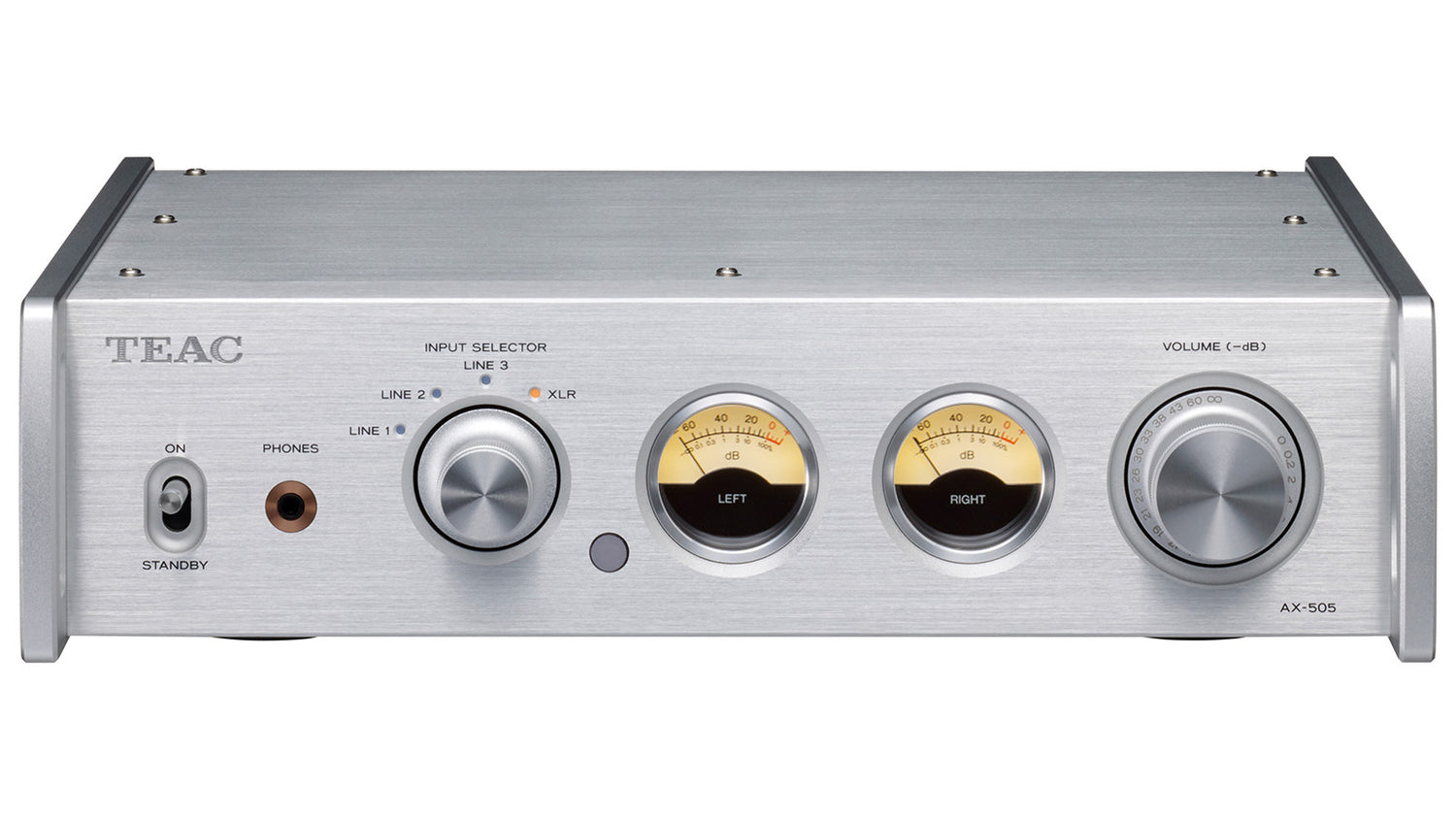

Teac AX-505 Integrated Amplifier

$1,999.99

Description
  The Teac AX-505 stereo integrated amplifier delivers impressive 130W+130W output from its compact A4-sized chassis. At its core, a TEAC-customized Hypex Ncore module provides exceptional efficiency with minimal heat generation. This sophisticated amplifier reproduces high-resolution audio with remarkable clarity, low distortion, and superior signal-to-noise ratio, preserving dynamic range and musical authenticity. The integrated headphone amplifier features ground-separate technology for superior personal listening. Aesthetic elements include responsive level meters displaying volume fluctuations and a precision-machined aluminum volume control with optimal damping. The passive cooling system ensures completely silent operation, eliminating distracting fan noise. Pair with TEAC's UD-505 DAC or NT-505 USB DAC/Network Player to experience the full spectrum of high-resolution audio formats, including DSD512 and PCM 768kHz. .
*Loyalty power perk rewards terms and conditions

Earn [points_amount] when you buy this item.

Spec description
Amplifier section
Maximum effective output (1kHz)
STEREO, BI-AMP 170W + 170W (4Ω)
95W + 95W (8Ω)
BTL 350W (8Ω)
Rated Output (1% THD, 1kHz)
STEREO, BI-AMP 125W + 125W (4Ω)
70W + 70W (8Ω)
BTL 230W (8Ω)
Allowable speaker impedance
STEREO, BI-AMP 4Ω to 16Ω
BTL 8Ω to 16Ω
Analog audio inputs
Balanced XLR × 1 pair
Input sensitivity 1.3V (8Ω, 1% THD output)
Input impedance 10kΩ or more
Unbalanced RCA × 1 pair
Input sensitivity 0.66V (8Ω, 1% THD output)
Input impedance 10kΩ or more
Speaker output
Connector Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)
External control
12V Trigger in
Conenctor 3.5mm Monaural Mini jack × 1
12V Trigger out (THRU)
Conenctor 3.5mm Monaural Mini jack × 1
General
Power supply AC 220 230V, 50/60Hz (Europe), AC 120V, 60Hz (USA/Canada)
Power consumption 58W
External dimensions (W×H×D) 290 × 84.5 × 271mm, 11 ½” × 3 ⅜” × 10 ¾” (including protrusions)
Weight 4.4kg / 9 ¾ lb
Included accessories Power cord × 1, Rubber pads × 3, Antistatic Cloth for level meters × 1, Owner’s manual


Audio performance
Frequency response 10Hz-50kHz (+0dB, –5dB, 8Ω, 1kHz, 1W)
Total harmonic distortion 0.0015% (8Ω1kHz, 12.5W)
S/N ratio 113 dB (8Ω, 1kHz)

Design and specification may subject to change without notice.
RoHS complied
