Suncoast Audio Direct

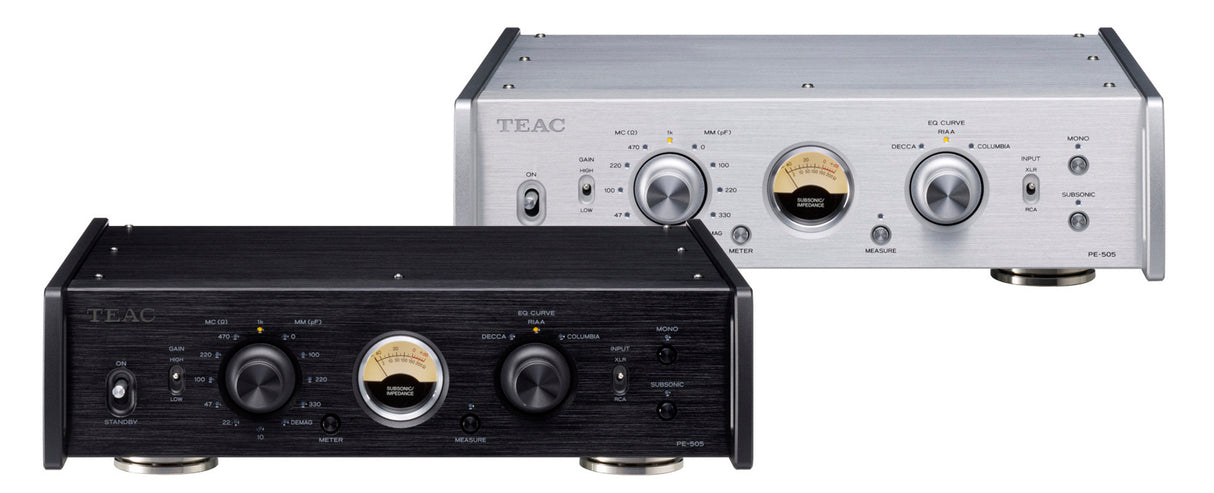

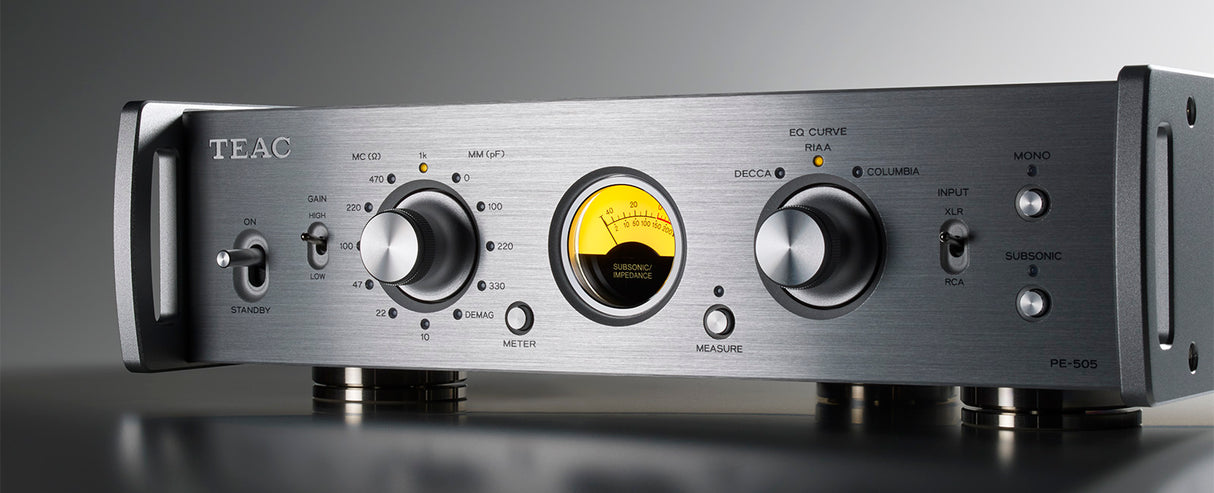

Teac PE-505 Phono Preamplifier

$2,499.00
%3Cp%3E%3Ca%20href=%22/pages/suncoast-audio-direct-points%22%20target=%22_blank%22%20title=%22Power%20Perks%20Rewards%22%3E%3Cstrong%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/strong%3E%3C/a%3E%3C/p%3E
Color

Description
Precision phono preamplifier engineered to faithfully reproduce vinyl recordings with minimal coloration. The Teac PE-505 features dual monaural, fully-balanced input/output circuits with support for balanced MC cartridge inputs. Built on TEAC's decades of recording and playback expertise, it amplifies even the faintest signals from your cartridge while maintaining sonic integrity. The PE-505 includes high-precision RIAA equalization plus selectable DECCA and COLUMBIA curves for accurate playback across different vinyl formats. Adjustable load resistance for MC cartridges and load capacitance for MM cartridges let you optimize performance based on your specific equipment and record condition. The result: audio that stays true to the original master recording.

Technical Specifications

Amplifier section
Total harmonic distortion (Rated output, 1kHz, GAIN Low)
 RCA input (MM) 0.002%
 RCA input (MC) 0.02%
 XLR input (MC) 0.02%
Residual noise volt (Input short, GAIN low, IHF-A)
 RCA input (MM) 10μV
 RCA input (MC) 65μV
 XLR input (MC) 85μV
S/N ratio (Input short, Rated input, GAIN Low, IHF-A)
 RCA input (MM) 106dB
 XLR input (MC) 86dB
RIAA deviation (20Hz to 20kHz) ±0.05dB
Channel separation −90dB or higher (MM, 10kHz, GAIN Low)
Gain
GAIN LOW
 RCA input (MM) 34dB
 RCA input (MC) 54dB
 XLR input (MC) 54dB
GAIN HIGH
 RCA input (MM) 46dB
 RCA input (MC) 66dB
 XLR input (MC) 66dB
Subsonic filter 17Hz, –24dB/octave
Phono input section

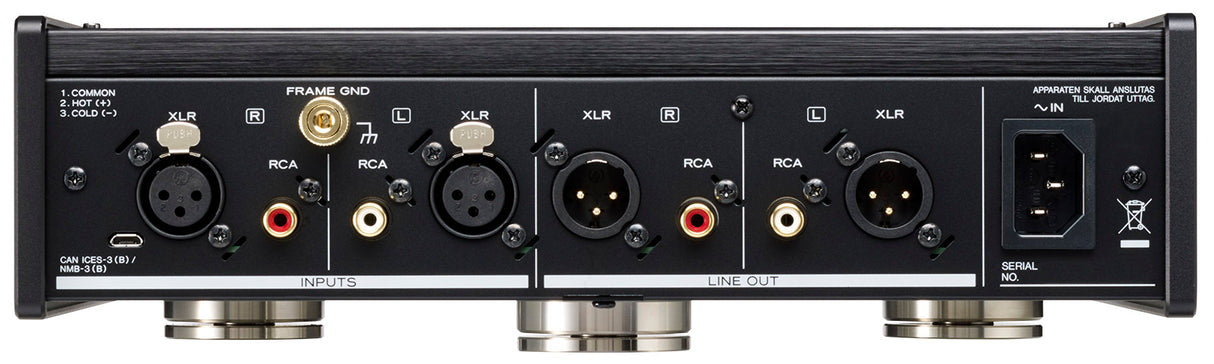

Unbalanced input RCA Pin (MC/MM compatible) × 1 pair
Max input level 150mV (MM, THD 0.1%, GAIN Low)
16mV (MC, THD 0.1%, GAIN Low)
Input impedance*
MM 47kΩ, Load-impedance: 0, 100, 220, 330pF
MC 10, 22, 47, 100, 220, 470, 1kΩ
Balanced input XLR (MC only) × 1 pair
Max input level 16mV (MC, THD 0.1%, GAIN Low)
Input impedance*
MC 10, 22, 47, 100, 220, 470, 1kΩ * switchable from the Settings
Analog output section
Unbalanced output RCA pin × 1 pair
Rated output level 2Vrms
Output impedance 63Ω
Balanced output XLR × 1 pair
Rated output level 4Vrms
Output impedance 126Ω
Power supply
AC120V, 60Hz

AC220 - 240V, 50/60Hz

Power consumption 14W
Overall dimensions(W × H × D) 290 × 84.5 × 252.5 mm / 11.4" × 3.3" × 9.9"
Weight 4.5kg / 10.0 lbs.
Included accessories Power cord × 1, Cushions for foot × 3, Owner’s manual × 1
