Teac PE-505B Phono Preamplifier

$2,099.99

Description

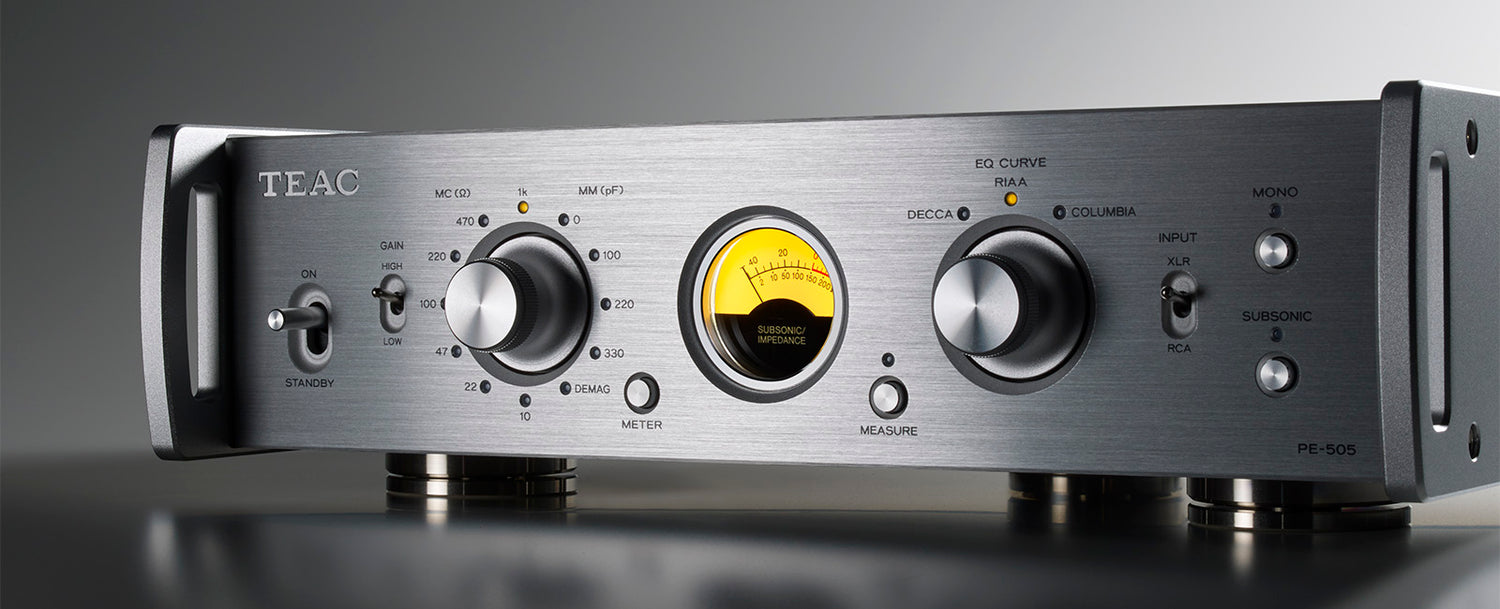

Phono equalizing amplifier with dual monaural and fully-balanced input/output circuit design. The PE-505 is a phono equalizing amplifier with dual monaural and fully-balanced input/output circuits that support balanced MC input.The development of the PE-505 was achieved by relying on TEAC’s audio technology expertise, focusing on recording and playback, with the goal of accurately reproducing the original intent of the recording producers. The PE-505 will amplify even very faint audio signals picked up by the cartridge, process them without coloration, and then deliver them faithfully in order to keep the listener as close as possible to the original sound that was played before it was engraved on the master disc.The high precision RIAA correction circuit, as well as both DECCA and COLUMBIA curves are supported. In addition, selectable load resistance for MC cartridges and load capacity for MM cartridges are present; allowing users to optimize the settings for the type of cartridge used and for the condition of the record.
*Loyalty power perk rewards terms and conditions

Amplifier section
Total harmonic distortion (Rated output, 1kHz, GAIN Low)
 RCA input (MM) 0.002%
 RCA input (MC) 0.02%
 XLR input (MC) 0.02%
Residual noise volt (Input short, GAIN low, IHF-A)
 RCA input (MM) 10μV
 RCA input (MC) 65μV
 XLR input (MC) 85μV
S/N ratio (Input short, Rated input, GAIN Low, IHF-A)
 RCA input (MM) 106dB
 XLR input (MC) 86dB
RIAA deviation (20Hz to 20kHz) ±0.05dB
Channel separation −90dB or higher (MM, 10kHz, GAIN Low)
Gain
GAIN LOW
 RCA input (MM) 34dB
 RCA input (MC) 54dB
 XLR input (MC) 54dB
GAIN HIGH
 RCA input (MM) 46dB
 RCA input (MC) 66dB
 XLR input (MC) 66dB
Subsonic filter 17Hz, –24dB/octave
Phono input section

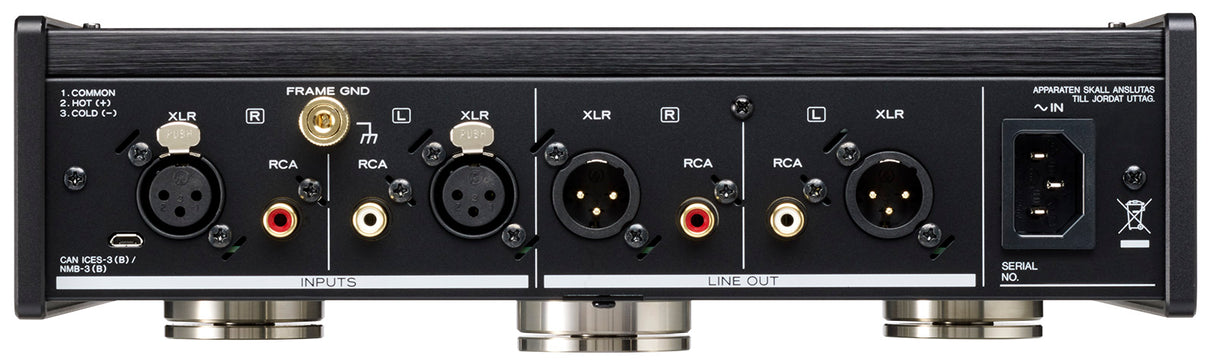

Unbalanced input RCA Pin (MC/MM compatible) × 1 pair
Max input level 150mV (MM, THD 0.1%, GAIN Low)
16mV (MC, THD 0.1%, GAIN Low)
Input impedance*
MM 47kΩ, Load-impedance: 0, 100, 220, 330pF
MC 10, 22, 47, 100, 220, 470, 1kΩ
Balanced input XLR (MC only) × 1 pair
Max input level 16mV (MC, THD 0.1%, GAIN Low)
Input impedance*
MC 10, 22, 47, 100, 220, 470, 1kΩ * switchable from the Settings
Analog output section
Unbalanced output RCA pin × 1 pair
Rated output level 2Vrms
Output impedance 63Ω
Balanced output XLR × 1 pair
Rated output level 4Vrms
Output impedance 126Ω
Power supply
AC120V, 60Hz

AC220 - 240V, 50/60Hz

Power consumption 14W
Overall dimensions(W × H × D) 290 × 84.5 × 252.5 mm / 11.4" × 3.3" × 9.9"
Weight 4.5kg / 10.0 lbs.
Included accessories Power cord × 1, Cushions for foot × 3, Owner’s manual × 1
