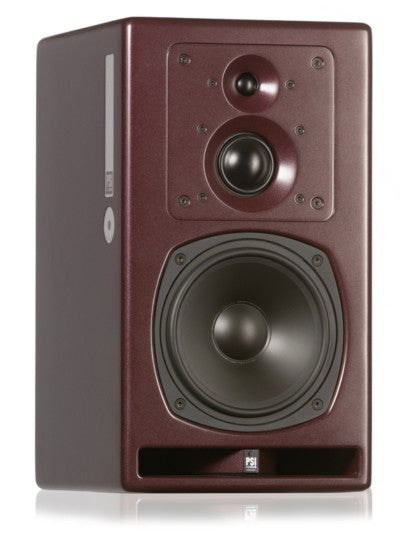

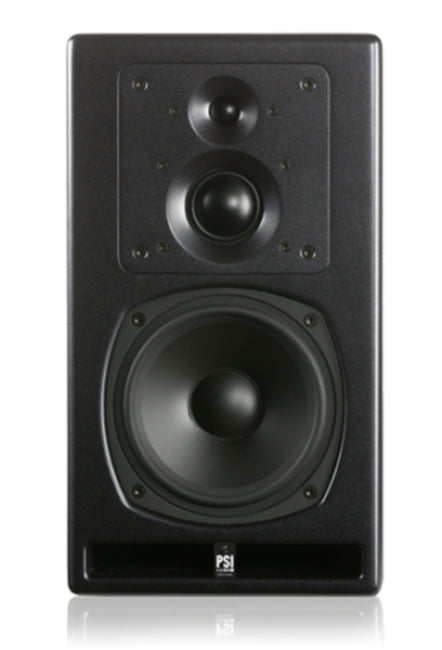

Psi Audio A23-M

Data A23-M [Unit]
Potential peak power 310 + 120 + 55 W
Continuous max SPL@1 m 108 dB
Short term max. SPL@1m 111 dB
Peak max. SPL@1m 122 dB
Signal to noise ratio (S/N) 100 dBA
Bandwidth at -6dB 34-23'000 Hz
SPL tolerances ±1.5 dB
Phase tolerances ± 45 (200 Hz – 20 kHz) deg
Dispersion (H x V) 85 x 40 deg
System 3 ways
Crossover frequency 620, 3'300 Hz
Woofer ext. diam. 240 mm
Woofer ext. diam. 9.4 in
W. diaphragm diam. 172 mm
W. diaphragm diam. 6.8 in
Tweeter ext. dim. 100 mm
Tweeter ext. dim. 3.9 in
T. diaphragm diam. 27 mm
T. diaphragm diam. 1.06 in
Dimensions W x H x D 280 x 500 x 340 mm
Dimensions W x H x D 11 x 19.7 x 13.4 in
Net Weight 18 Kg
Net Weight 39.6 lbs
Input connector 1 x XLR F / 3P
Warranty 5 (+1) years
PSI Audio A23-M SPL Graphic
FLAT R
